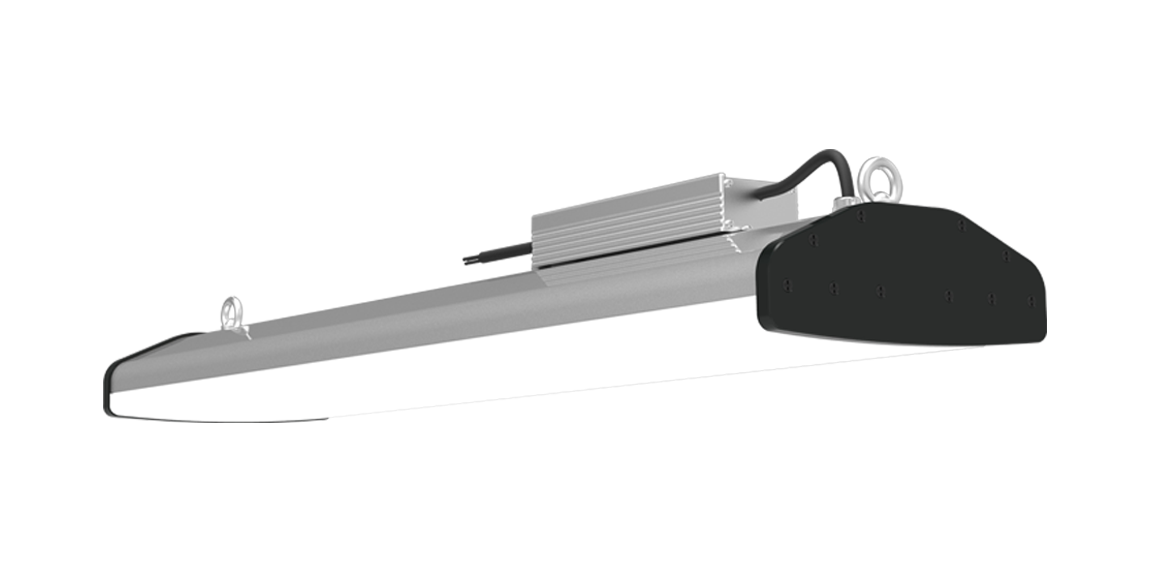

Built-out Driver 0.9m 4ft 150W DLC High Clean LED High Bay

Product Model:TBG4-200W

In food processing, farm, cold storage, pharmaceutical industry and other industrial applications, wireless light control high bay and low bay led light fittings required to be easy to clean. TUBU’s app controlled and DLC, UL1598 approved LED industrial lighting the back side is smooth, the housing is vapor tight, it can be easy clean by water gun.

Ideal solution for lighting cold storage and food processing environments.

TUBU’s IP66 LED Clean High Bay G4 is an ideal solution for lighting cold storage and food processing environments. Very few industries, if any, have more stringent lighting requirements than food and beverage processing industry. The main challenge is that food and beverage processing operations must have luminaries that can withstand the daily wash downs required to prevent bacteria growth or harborage of other contaminants.

high temperature resistant light fittings

High visibility and well-distributed lighting

Professional eye care,no glare, uniform luminance.

easy clean high bay led with pc cover

Ideal solution for lighting cold storage and food processing environments.

High Output LED’s, up to 130lm/W, Samsung LEDs used, High CRI >85,  Meanwell brand driver, TUV UL CE certificate, PF>0.96, THD<12, Environmentally friendly, no mercury, No UV, No IR, Certificate: CE, RoHs, ETL, cETL, DLC , 1-10V Dimming, MW Sensor, DALI Control Options

dlc cetl ce ip65
heat proof light fittings 100w

Tech Specs

Tech Specs
Model No                          TBG4-100W                                            TBG4-150W
Input Power                        100W                                                         150W
Dimension                         600mm                                                       900mm
CCT                            4000K/5000K/6000K                                     4000K/5000K/6000K
CRI                                     >82                                                                >82
Power Factor                    >0.9                                                             >0.9
IP Grade                            IP66                                                             IP66
Input Voltage           90~305V/180~480VAC                                90~305V/180~480VAC
luminous efficacy            135lm/W                                                     135lm/W
Beam Angle                     120˚                                                               120˚
Working Temps             -40˚-50˚                                                        -40˚-50˚
Warranty                        7 Years                                                          7 Years
Lifespan                          50000H                                                         50000H
More Details
  • Smooth surface,easy to clean and wash
  • High Output LED’s,up to 130lm/W, Samsung LEDs used
  • High CRI >85
  • Beam angle: 120°
  • Ambient Temperatures: -40°C to  50°C
  • Meanwell brand driver ,TUV UL CE certificate,PF>0.96, THD<12
  • Flicker free
  • Environmentally friendly, no mercury, No UV, No IR
  • IP66 rated, perfect for wet and damp environments
  • Energy Efficiency Grade: A+
  • Quick Start instant 100% luminous flux
  • 5 Year Warranty on complete fixture. (LED’s, Driver, & Housing)
  • Certificate:CE, RoHs, ETL, cETL, DLC pending
  • 1-10V Dimming, MW Sensor, DALI Control Options
Application

  Cold Storage: Food Distribution Centers, Grocery Storage, Commercial Wineries, Restaurant Storage, Brewery Facilities
•  Food Processing: Meat Packing, Bottling Centers, Cheese Factories, Produce Centers, Fish Packing, Bakeries
•  Warehouse & Logistics
•  Parking Garages And More

Downlod

When you have much file you can put here:
Download file name 1
Download file name 2
Download file name 3

Applications

high clean led high bay application for food processing
