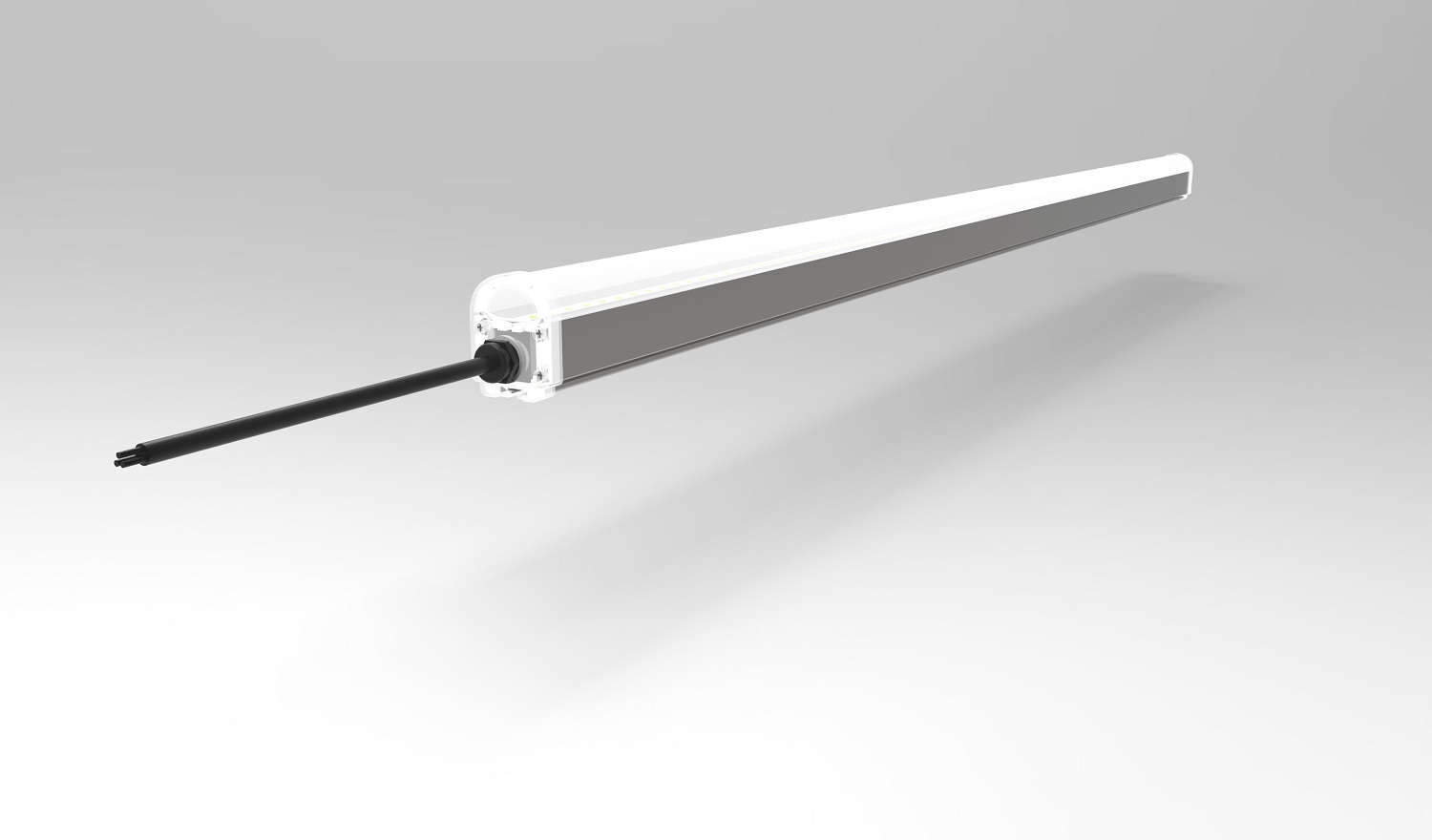

IP65 LED linear fixture single use

High Output LED’s,up to 140 lumen per watt

ip65 mini led tri-proof light

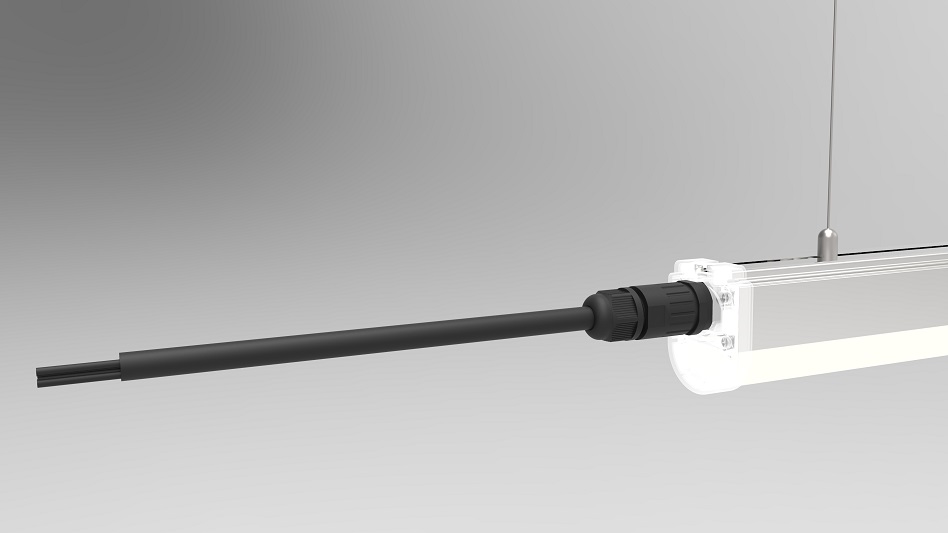

IP65 linkable with cable

IP66 Water-proof,Dust-proof,Corrosion-proof,Pressure-proof

anti corrosive light fittings

Wide beam angle140°

High Output LED’s, up to 140lm/W, PF>0.96, THD<12, Environmentally friendly, no mercury, No UV, No IR, Certificate: CE, RoHs, ETL, cETL, DLC pending, 1-10V Dimming, MW Sensor, DALI Control Options

certification

Tech Specs

Tech Specs
Model No                                 TBL5-15W                                TBL5-30W                                    TBL5-40W
Input Power                                15W                                          30W                                              40W
Dimension                          600*46*63mm                            1200*46*63mm                          1500*46*63mm
Housing Color                                                                         Standard Silver
CCT                                                                                   3000K/4000K/5000K/6000K
CRI                                                                                              >80(CRI>90 option)
Power Factor                                                                              >0.9
IP Grade                                                                                     IP65
Input Voltage                                                                      AC100-240V 50/60HZ
Luminous Efficiency                                                                  140lm/W
LED Driver                                                                           CE/TUV/UL Certified driver
Dimmable Solution                                                                    1-10V
Beam Angle                                                                                 120˚
Working Temp                                                                       -20˚C~+60˚C
Warranty                                                                                   5 Years
Lifespan                                                                                    50,000hrs
More Details

Benefits

  • Fast and easy installation with quick plugs
  • A +++ 92% Energy saving compare to Halogen, 60% compare to Fluorescent, 60% compare to Metal Hilide lighting
  • Lower maintenance cost thanks to over 3 times longer lifetime

Features

  • High Output Samsung LED’s,up to 140lm/W
  • High CRI >80
  • IP65
  • Milky PC cover
  • 5 Year Warranty on complete fixture. (LED’s, Driver, & Housing)
  • 1-10V Dimming,Microwave Sensor Options
  • Pendent Mount or Surface Mount
  • Linkable connection for one row lighting
Application
  • Supermark
  • Warehouse
  • Sports Halls
  • Workshops
  • Office
