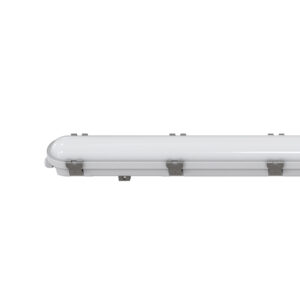

IP66 LED Batten Light L10-S Series Pro
Features:
Description
IP66 LED Batten Light L10-S Series Pro Safe and reliable, easy to install. Adopting stainless steel clamp and safety rope, solid installation. 5*2.5mm² straight through wiring, convenient wiring. Isolated flicker-free driver, safe and reliable, no flicker hazards. IP66 LED Batten Light has multiple functions to meet different needs. Optional dimming, emergency, intelligent control etc. PC cover & PC base, sturdy and durable. Emergency self-test with LiFePO4 battery option. Microwave sensor option for intelligent control.
Tech Specs
Product Code | TBL10A2F-20W-S | TBL10A4F-40W-S | TBL10A5F-60W-S |
|---|---|---|---|
Power | 20W | 40W | 60W |
Input Voltage | 200-240VAC/100-277VAC (50/60HZ) | ||
PF | 0.9A@220VAC | ||
Dimming Option | 0-10V /DALl, MWV Sensor, Emergency | ||
CCT | 2700K/3000K/4000K/5000K/5700K/6000K/6500K | ||
Luminous Flux | 2600lm / 3000lm | 5200lm / 6000lm | 7800lm / 9000lm |
Efficiency | 130Lm/W±5% / 150Lm/W±5% (Ra>80) | ||
Luminous Flux | 3400lm / 3700lm | 6800lm / 7400lm | 10200lm / 11100lm |
Efficiency | 170Lm/W±5% / 185Lm/W±5% (Ra>80) | ||
LED Brand | Lumileds/Hongli 2835 | ||
Beam Angle | 120° | ||
Operation Temp | -20C~+40°C | ||
Storage Temp | -20C~+60°C | ||
Life Span | Ta 40C L70>54000Hours | ||
IP Class | IP66 | ||
IK Class | IK10 | ||
Certificate | ENEC, CE, RoHs | ||
Lamp Body Color | PC Base (Grey)+PC Cover (Milky) | ||
Product Size (mm) | 600*95*80 | 1200*95*83 | 1500*95*83 |
Packing Size (mm) | 690*335*300 | 1290*335*210 | 1590*335*210 |
Quantity/carton | 9PCS | 6PCS | 6PCS |
Gross Weight (kg) ±0.3 | 13 | 15 | 19 |
Installation mode | Surface Mount/Suspension Mount | ||
IP66 LED Batten Light L10-S Series Pro
Ultra-Durable & Rugged
IP66 & IK10 rated for dust, water, shock, and impact - ideal for harsh environments.
High Efficiency & Long-Lasting
Up to 185Lm/W system efficiency delivers exceptional brightness while minimizing energy consumption. 5-year warranty ensures lasting performance.
Safe & Secure Installation
Stainless steel clips and safety rope for secure mounting. 5*2.5mm² through wiring simplifies electrical connection.
Versatile Functionality
Multiple options including dimming, emergency backup with LiFePO4 battery, microwave sensor for wireless control, and 0-10V dimming/DALI compatibility.
Flicker-Free & Reliable
Isolated flicker-free driver ensures smooth operation and eye comfort. PC milky cover for additional durability. CE, RoHS, ENEC, and RCM certified for safety and quality.
Installation mode
Applications
Workshops, Warehouse, School lighting, Car parking lighting, Supermarket, Storehouse Storage, Offshore heavy industry.
