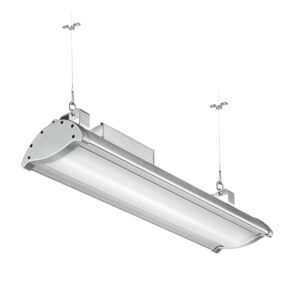

LED Linear High Bay Light

Features:

  • High Output LED's, up to 130~150lm/W
  • High CRI > 80
  • Brand driver, TUV UL CE certificate, PF>0.96, THD<12
  • Flicker-free
  • Environmentally friendly, no mercury, No UV, No IR
  • IP65, indoor use
  • Energy Efficiency Grade: C
  • Quick Start instant 100% luminous flux
  • 5 Year Warranty on complete fixture. (LEDs, Driver&Housing)
  • Certificate: CE, RoHS, SAA, C-Tick
  • Optional: 1-10V, DALI Dimming, MW Sensor(optional)
  • Surface Mount & Suspension Mount Optional

Description

TUBU's Linear Low Bay Light is a cost-effective and low-maintenance alternative to traditional linear lights.

We offer two choices of luminous efficiency: standard 130lm/w or higher 150lm/w efficiency. Fast and easy installation to replace existing HID & HPS fixtures up to 500W

The Low Bay Light has a waterproof rating of IP65, which is resistant to dust, corrosion, and pressure, ensuring stable and reliable performance and long service life. And it has a unique linear design, equipped with a 90°rotatable mounting bracket and hanging mounting accessories, which can adjust the angle flexibly and conveniently.

This Linear Low Bay Light is equipped with a branded driver with a TUV UL CE certificate, which has a power factor (PF) greater than 0.96 and a total harmonic distortion (THD) less than 12, ensuring efficient and reliable performance.

TUBU's low bay lights come in a variety of wattages (20W, 40W, 60W, 80W, 100W) and lengths (2F, 4F, 5F), giving you a variety of options to suit your needs. It also has a wide beam angle of up to 160°, which effectively reduces light loss and covers a large lighting area.

Suitable for parking lot lighting, supermarkets, workshops, storage areas, schools, and warehouses.

Tech specs

Product Code

TB-HT80W-G2

TB-ht150W-G2

TB-ht200w-g2

Power

80W

150W

200W

Input Voltage

200-240VAC/100-277VAC (50/60HZ)

Dimming Option

0-10V/Dali Dimming

PF

>0.9@220VAC

CCT

3000K/4000K/5000K/6000K

Ra>80

Luminous Flux

14000Lm±5%/12000Lm±5%

19500Lm±5%/22500Lm±5%

26000Lm±5%/30000Lm±5%

Ra>80

Efficiency

130Lm±5%/150Lm±5%

LED Brand

SMD2835/3030

Operation Temp

-20℃~+45℃

Storage Temp

-20℃~+60℃

Life Span

Ta 40C L70>54000Hours

IP Class

IP65

IK Class

IK10

Certificate

CE, RoHS, SAA

Lamp Body Color

Housing: Aluminum/ Color: Sliver/ Lens: PC

Product Size (mm)

600*175*75mm

1200*175*75mm

1500*175*75mm

Packing Size (mm)

650*250*220mm

1250*250*220mm

1550*250*220mm

Quantity/carton

2PCS

2PCS

2PCS

Gross weight (kg) ±0.3

9

16

18

Installation mode

Surface Mount/Suspension Mount

Maximum coverage and visibility

160° wide beam angle, spreads the light over a larger area, improving coverage and visibility.

Efficient Heat Dissipation
Combined with Durability

Has an aluminum die-cast housing. Aluminum material is known for its excellent heat dissipation, which can effectively dissipate the heat generated by LEDs. Ensuring peak performance and extending the overall life of the product.

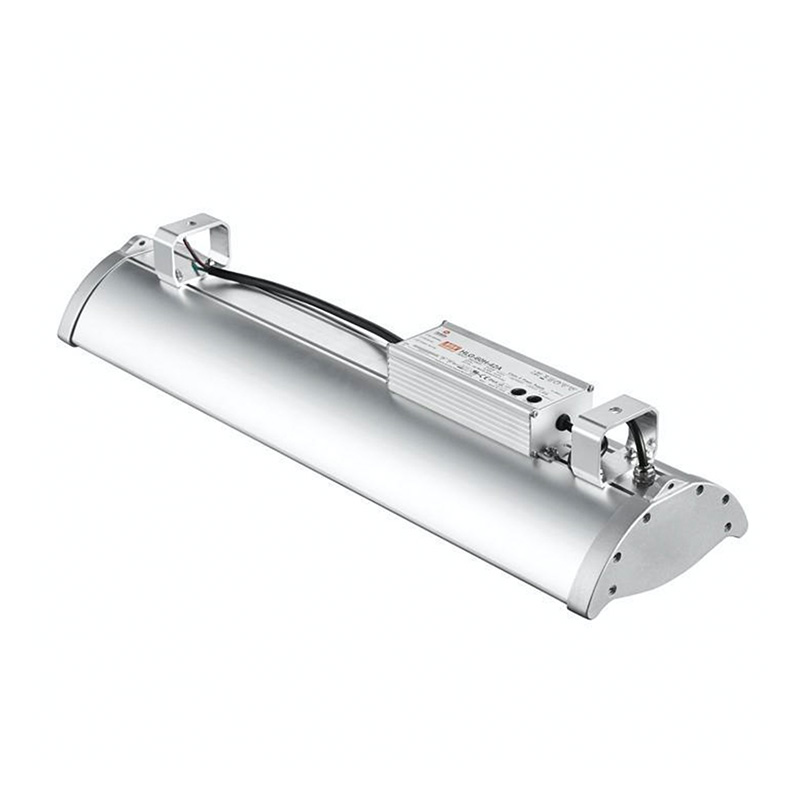

Meanwell Brand Drivers

Uses Meanwell brand drivers focused on durability and performance, providing consistent, flicker-free lighting. (TUV UL CE certificate, PF>0.96, THD<12)

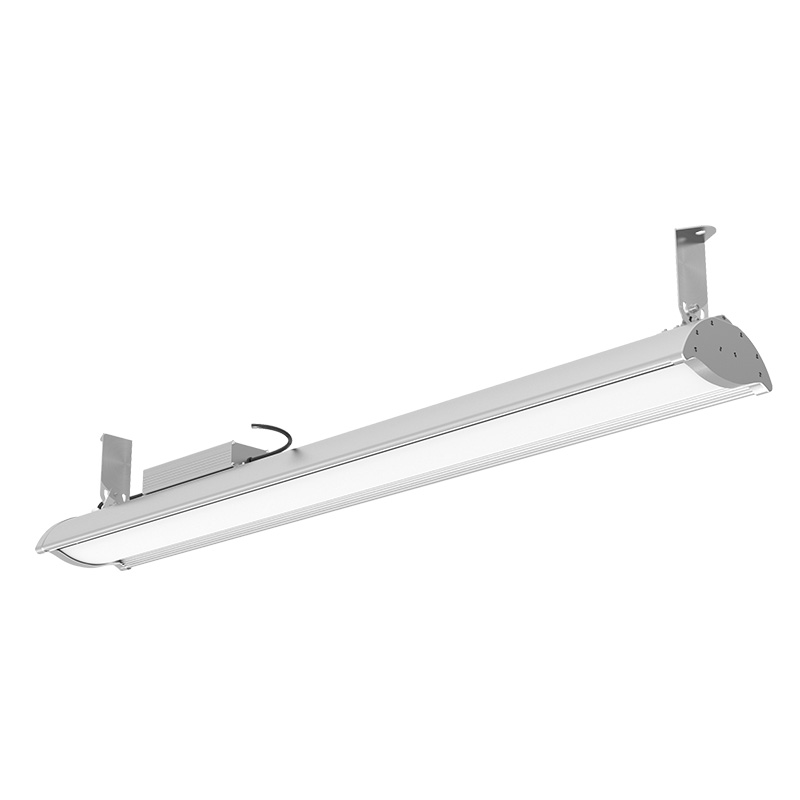

The Installation
Angle Can Be Adjusted

Features a unique linear design with a 90° rotatable mounting bracket. In addition, it includes hanging mounting accessories, which provide flexible and convenient angle adjustment.

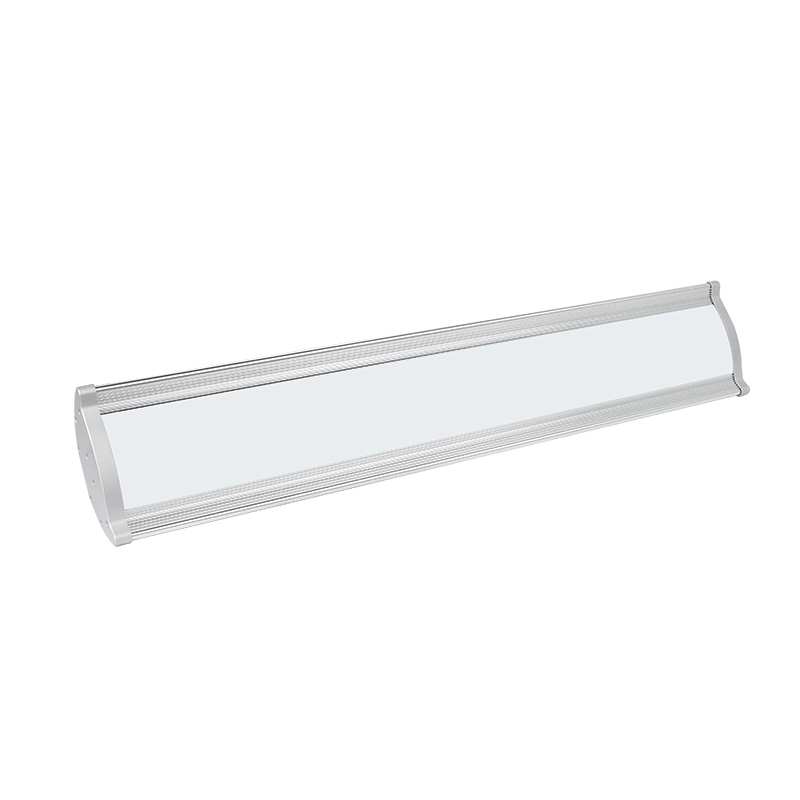

Two kinds of
Light Tpye are optional

Equipped with two light types, SMD2835 and SMD3030. SMD3030 has high lumen output underrated power, suitable for high-end lighting applications, and adopts anti-vulcanization measures, SMD2835 has high brightness and compact design, and ultra-stable base.

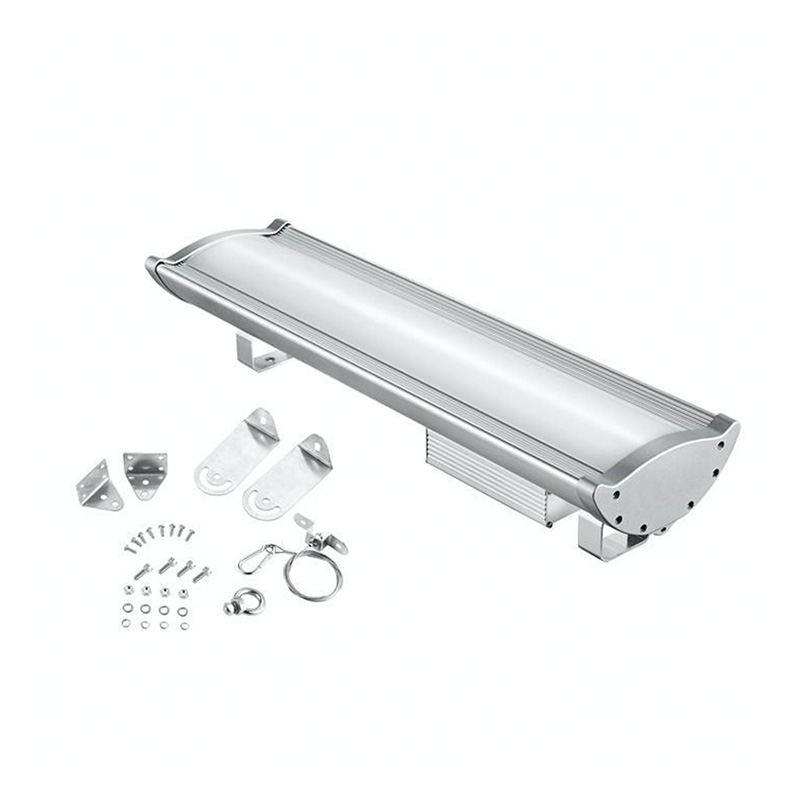

Equipped With
Protective Netting (Optional)

With matching protective net to prevent collision and enhance the protection of LED lights

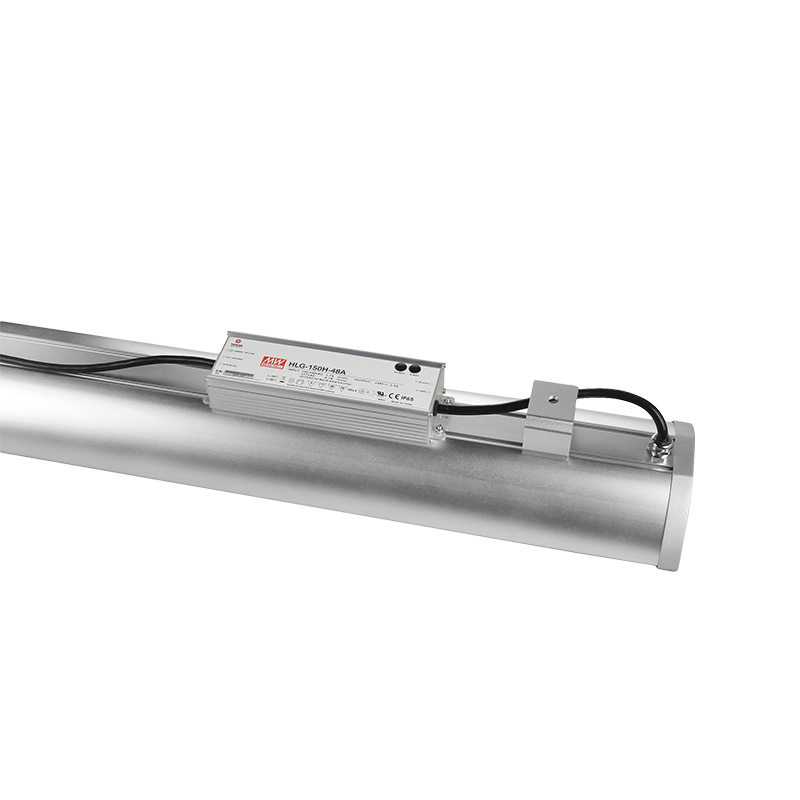

Versatile Dimming Solutions

Compatible with 1-10V, DALI dimming, and external MW sensors to power lighting controls, enhancing the advanced functionality, energy efficiency, and convenience of lighting control systems.

Installation mode

LED Linear High Bay Light Installation mode

Applications

Anti-glare lighting for schools
LED Linear High Bay Light Warehouse lighting

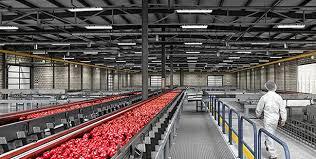

LED Linear High Bay Light processing plant lighting
