2ft 0.6m 20W IP69K anti ammonia LED tri-proof light fixture

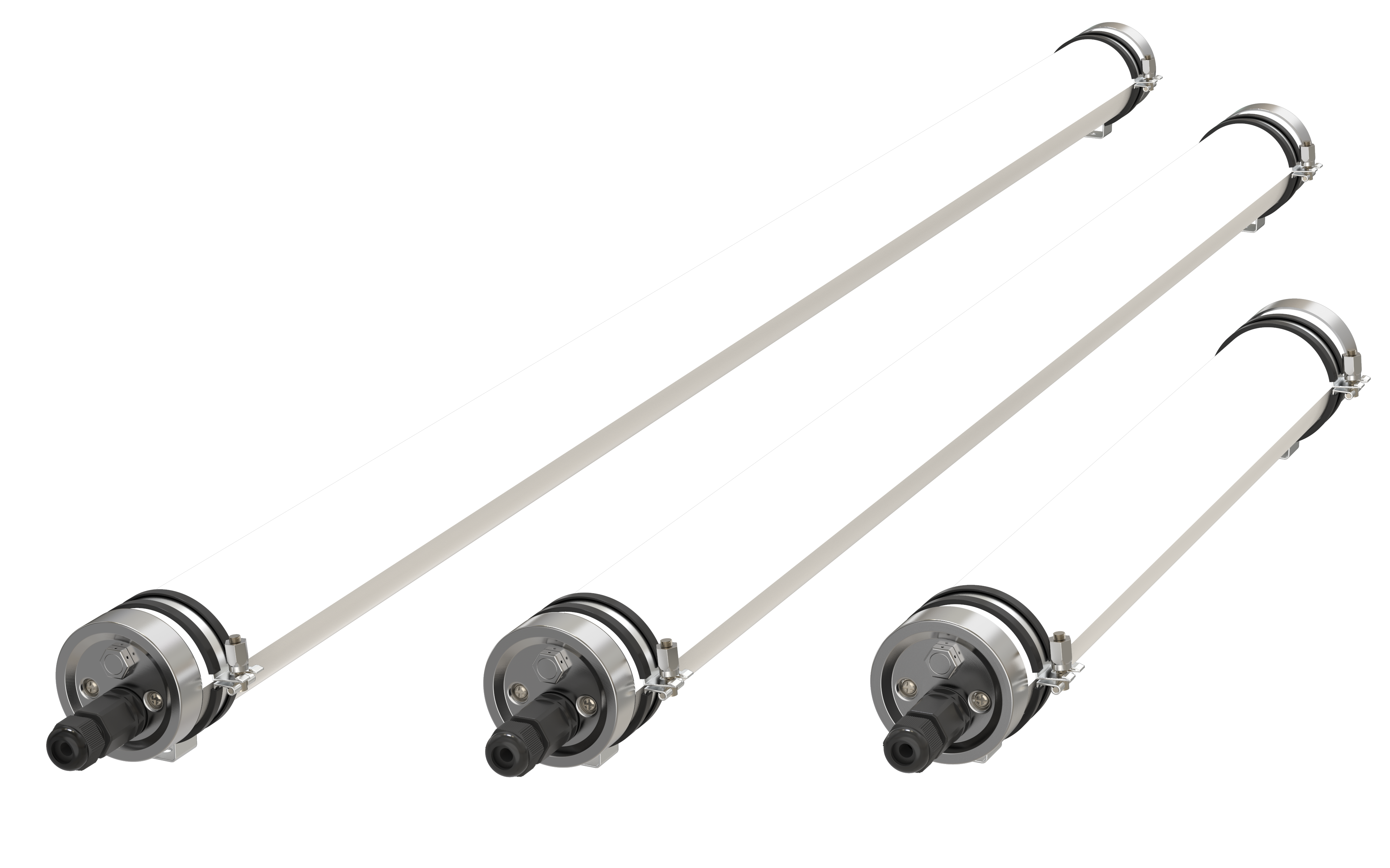

TUBU IP69K LED Tubular luminaires with PC or PMMA cover

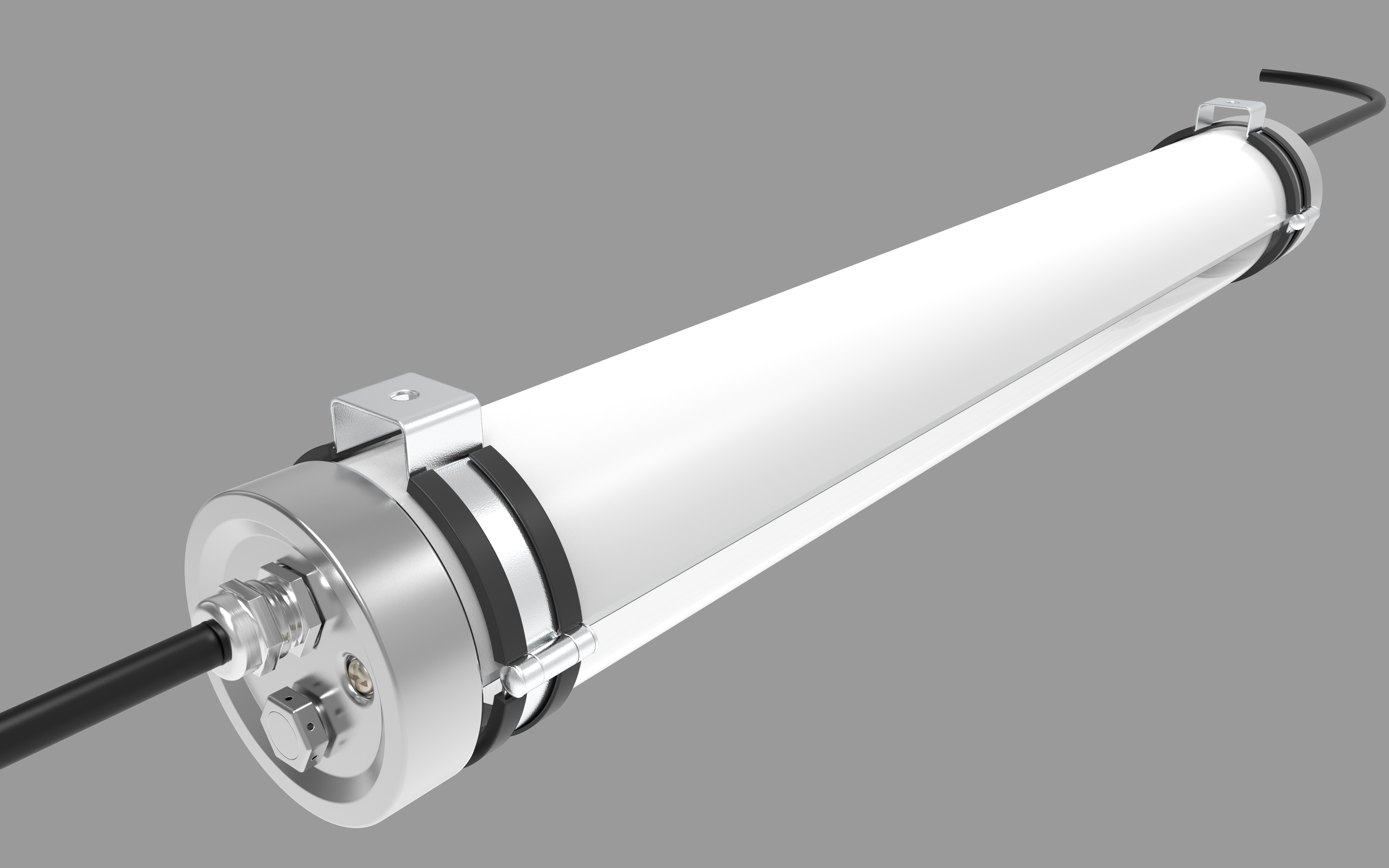

Mounting bracket with Silicone case

TUBU ip69k ik10 led luminaires with pc and pmma cover

UGR19 anti-glare options, 40°, 60°, 90° available

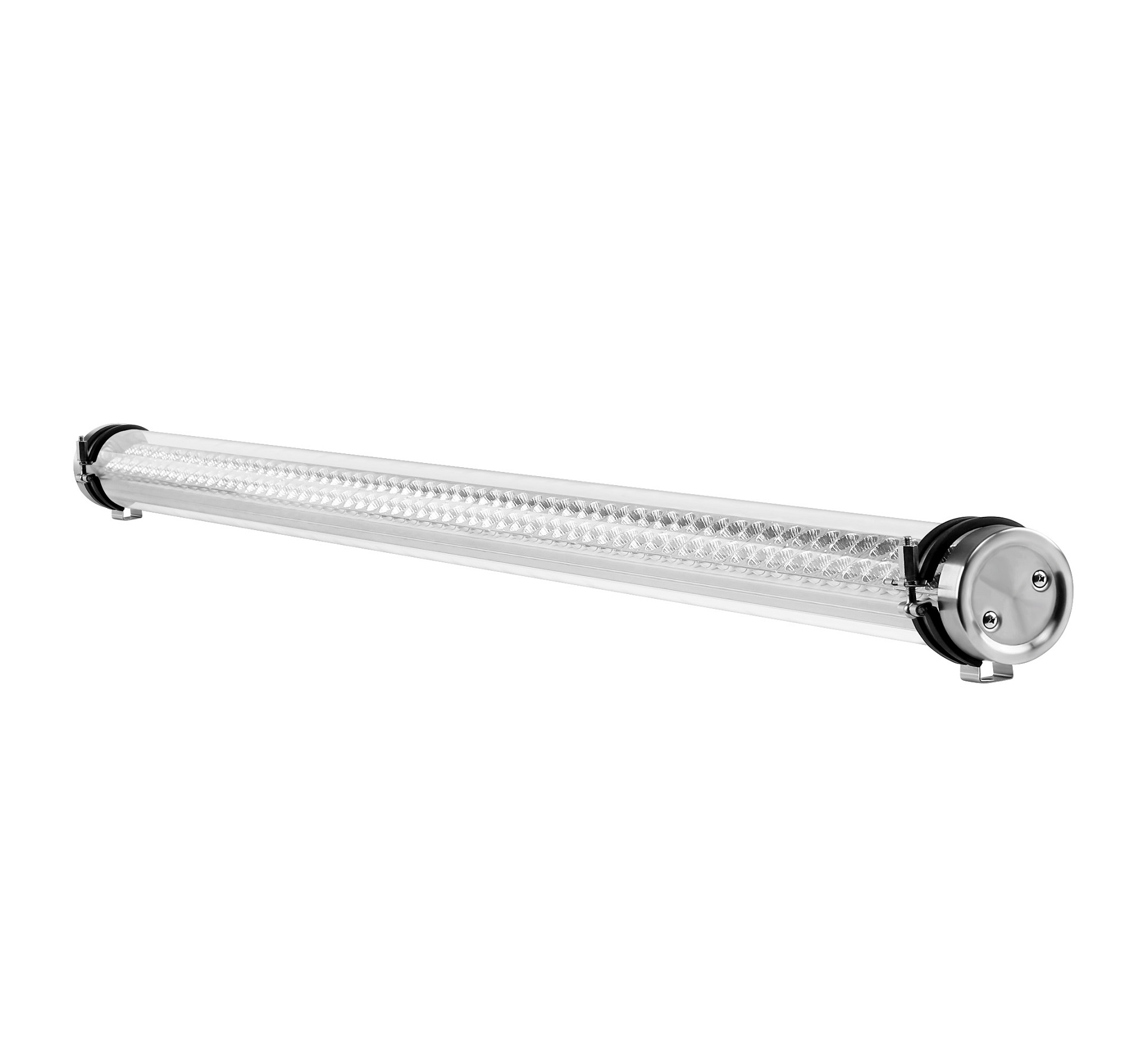

TUBU IP69K led luminaires with 60° 90°reflector

304 / 316L stainless steel end caps and mounting bracket, anti-corrosive

IK10 with PC Cover, IK06 with PMMA Cover

Internal motion sensor with remote control

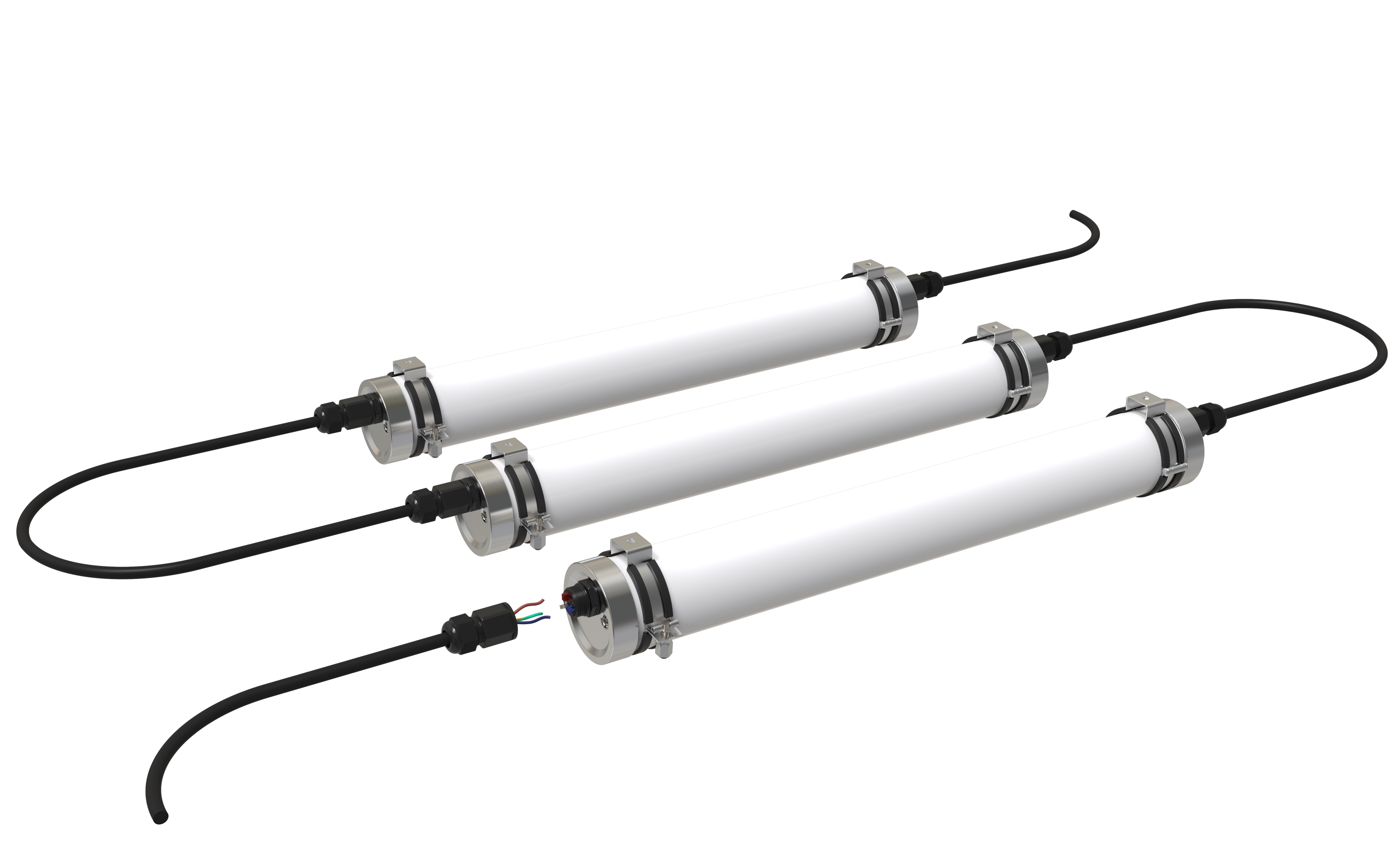

Through wiring option with plug and play fast installation connectors 3×1.5mm² / 5×1.5mm²

Glow wire test 850℃, 94V0 fireproof

aluminium PCB with a high thermal
conductivity for up to 432pcs of 0.5W
SMD2835 LEDs(gold wire soldering)

Specifications

TUBU’s IP69K LED Tri-proof Light L9 are an ideal solution for food processing and poultry lighting industry. The IP69K is the highest level of this protection and is designed for applications where water jets are under high pressure and high temperature are used for specific wash-downs. This will also include special sensitization and chemical cleaning. In some instances, the cleaning process involves very intensive requirements for industries such as Food & Beverage as well as the vehicle industry.

Tech specs
Model No                                        TBL92F-20W                       TBL94F-40W                     TBL95F50W                       TBL95F60W
Input Power                                           20W                                      40W                                  50W                                    60W
Dimension                                     552 * Ø75mm                   1152 * Ø75mm                 1452 * Ø75mm                 1452 * Ø75mm
CCT                                                                                                      4000K & 5000K & 6000K
CRI                                                                                                                      >80
Power Factor                                                                                                     >0.9
IP Grade                                                                                                             IP65
Input Voltage                                                                                      AC200-240VAC (50/60Hz)
Luminous                                                                                                         130lm/W / 150lm/W
Beam Angle                                                                                                        120˚
Working Temp                                                                                               -40˚~40˚ C
Warranty                                                                                                          5 Years
L70                                                                                                                  >54,000hrs

Features

  • IP69K , IP69, IP67
  • Impact resistance PMMA IK08 / PC IK10
  • Gas-proof,against ammonia and sulphurous vapours
  • Anti-ammonia
  • Gas-proof , impact resistance
  • Against water pressure of 100bar(1450psi) and temperature of 80°C water temperature
  • System efficiency up to 130lm/W & 150lm/W option
  • High CRI >80
  • UGR<19 option
  • Environmentally friendly, no mercury, No UV, No IR
  • Wide beam angle 120°
  • Energy Efficiency Grade: A+
  • Quick Start instant 100% luminous flux
  • 5 Year Warranty on complete fixture. (LED’s, Driver, & Housing)
  • Certificate:CE,CB,RoHs ,IK10,IP69K Certified
  • Surface Mount or Suspended

Applications

• Food Processing

• Farm Lighting

• Poultry Lighting

  • offshore and marine industries
