IP66 LED Tri-proof Light-Classic Series

IP66 LED tri-proof light

• High Output LED’s, up to 130lm/W, 150lm/W optional
• High CRI >80
• IK08 impact design
• High Transmittance PC cover, no shadow
• Flicker-Free driver, High PF>0.96 low THD 12% driver
• Environmentally friendly, no mercury, No UV, No IR
• Through wiring 5×2.5mm² Linkable
• IP66 waterproof, dustproof, corrosion-proof, pressure-proof, and vibration proof
• Energy Efficiency Grade: A+
• Quick Start instant 100% luminous flux
• 5 Year Warranty on complete fixture. (LED’s, Driver, & Housing)
• Certificate: CE, RoHS, ENEC
• Optional: 1-10V Dimming, 3 steps dimming microwave sensor, 3 hours 30% Emergency Battery Backup
• Installation: Hanging Mount & Surface Mount

You can make an inquiry about this product.
Your e-mail will not be leaked.

Features

TUBU’s IP66 LED Tri-proof Light batten fixture L10 K series are an ideal solution for both wet and dry locations such as parking garages, warehouses, and exterior hallways as well as factory prodution areas, basements, subway, train station and storage areas. They are available in lengths from 2ft 4ft 5ft with both surface mount and suspension mount options.

Tri-proof led fixture is waterproof, dust, corrosion and pressure-proof, it is made by PC material housing with 94V2 fire rated protection, safe for many different application.

Efficiency is up to 130lm/w, IK08 impact protection, life span is up to L70>54,000 hours, a 50W 150cm tri-proof light fixture can replace a 2x60W fluorescent tube, the return on investment is less than one year.

Specifications

Tech specs
Model No                     TBL10A2F-18W-K                    TBL10A4F-36W-K                     TBL10A5F-50W-K
Input Power                            18W                                           36W                                            50W
Dimension                        600*95*83mm                          1200*95*83mm                          1500*95*83mm
CCT                                                                       3000K / 4000K / 5000K / 5700K
CRI                                                                                           >80
Power Factory                                                                          >0.9
IP Grade                                                                                    IP66
Input Voltage                                                                        200-240VAC
PC Cover                                                                                  Milky
Lumen Efficacy                                                                   130lm/W±5%
Luminous                       2200~2450lm                               4800~5400lm                             6200~6700lm
Beam Angle                                                                              120˚
Working Temp                                                                      -20˚-40˚C
Warranty                                                                                5 Years
Lifespan                                                                           L70> 54,000hrs

Applications

• Car parking Lighting

• School Lighting

• Workshops

• Supermarket

• Warehouse

• Storage

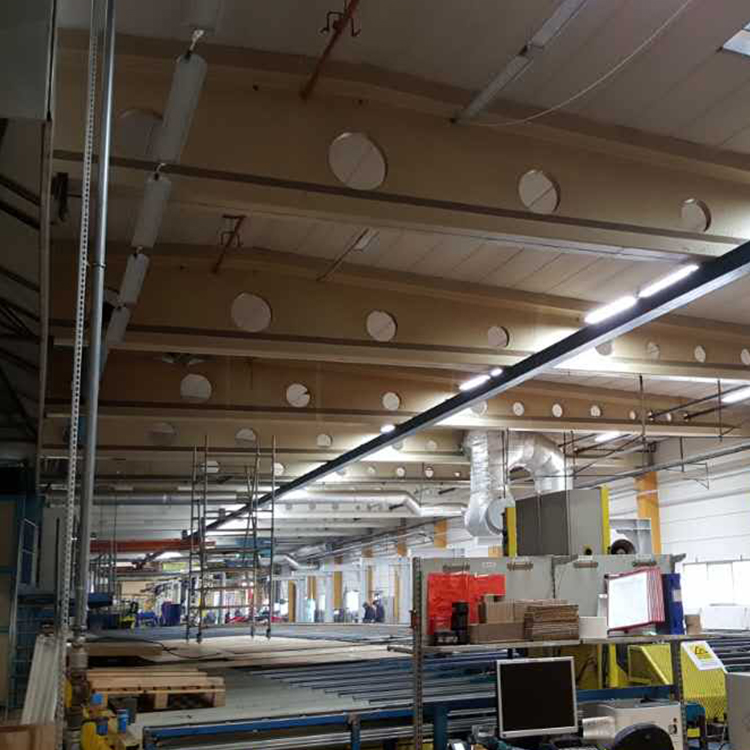

tubu led tri-proof light application in factory

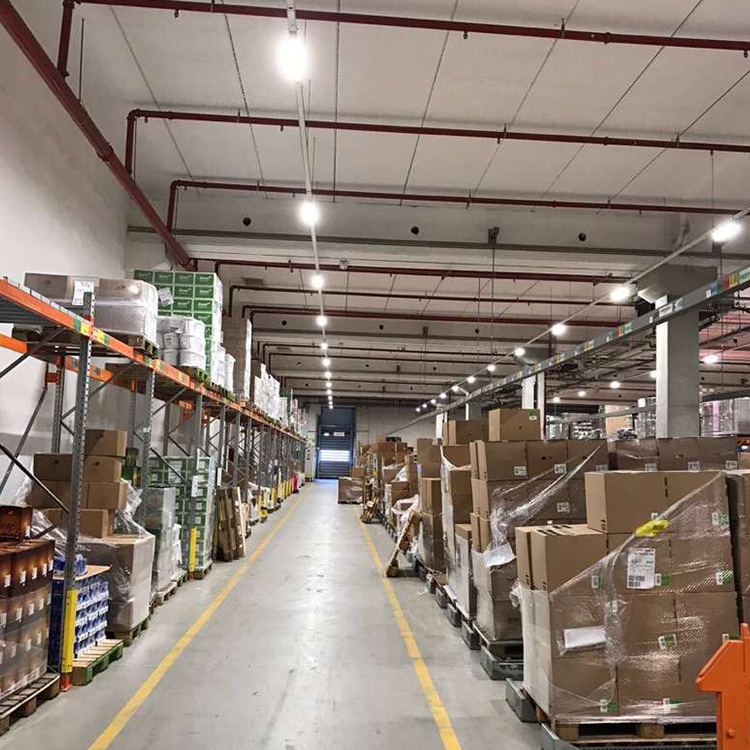

tubu led ip66 linear vapor tight fixture for warehouse

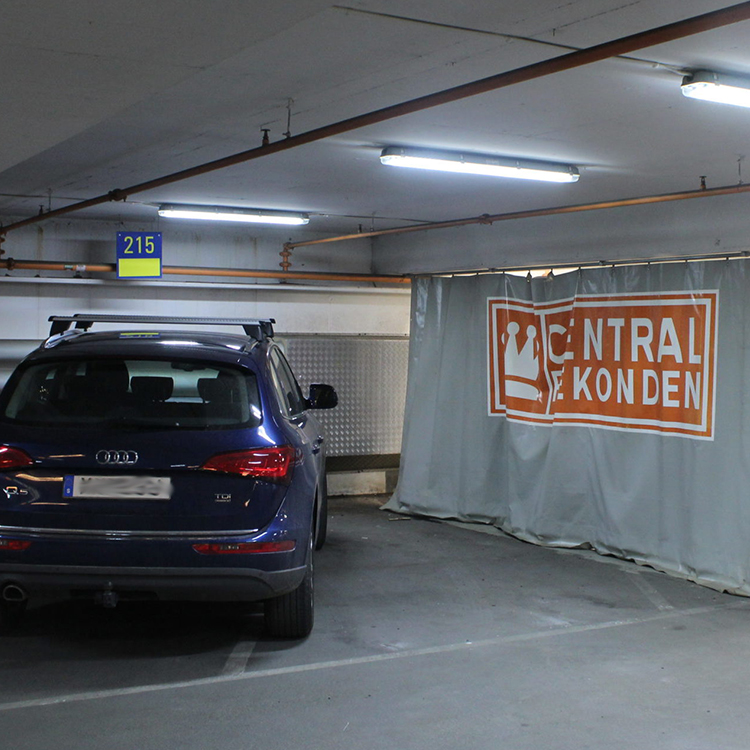

tubu led batten light application for car parking

Product Details

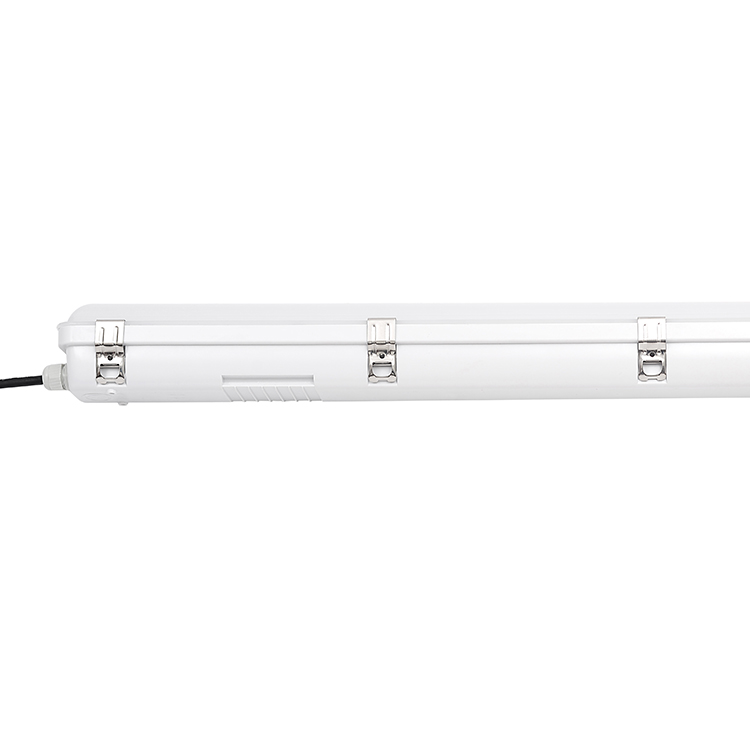

IP66 Classic LED Batten Light Resistant to humidity and dust

Stainless Steel Mounting Clips, High Transmittance PC cover

130lm/W high lumen output with high transmittance PC cover and PC base

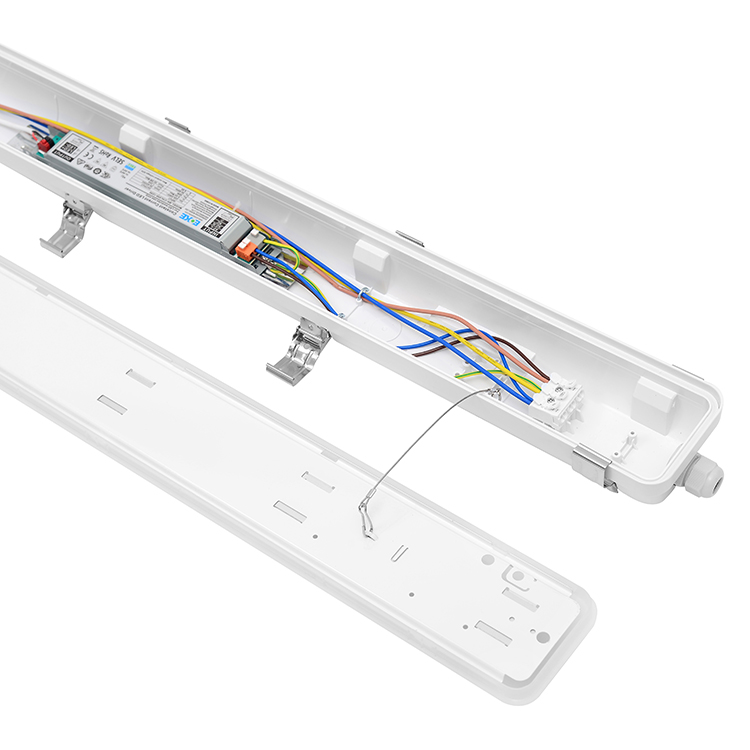

Through wiring 3×2.5mm² and 5×2.5mm² , Sensor, Emergency Battery Backup, DALI, 0-10V option

Boke isolated flicker free driver inside, TUV, CB, C-TICK, ENEC certified. High lumens epistar led chip used.
