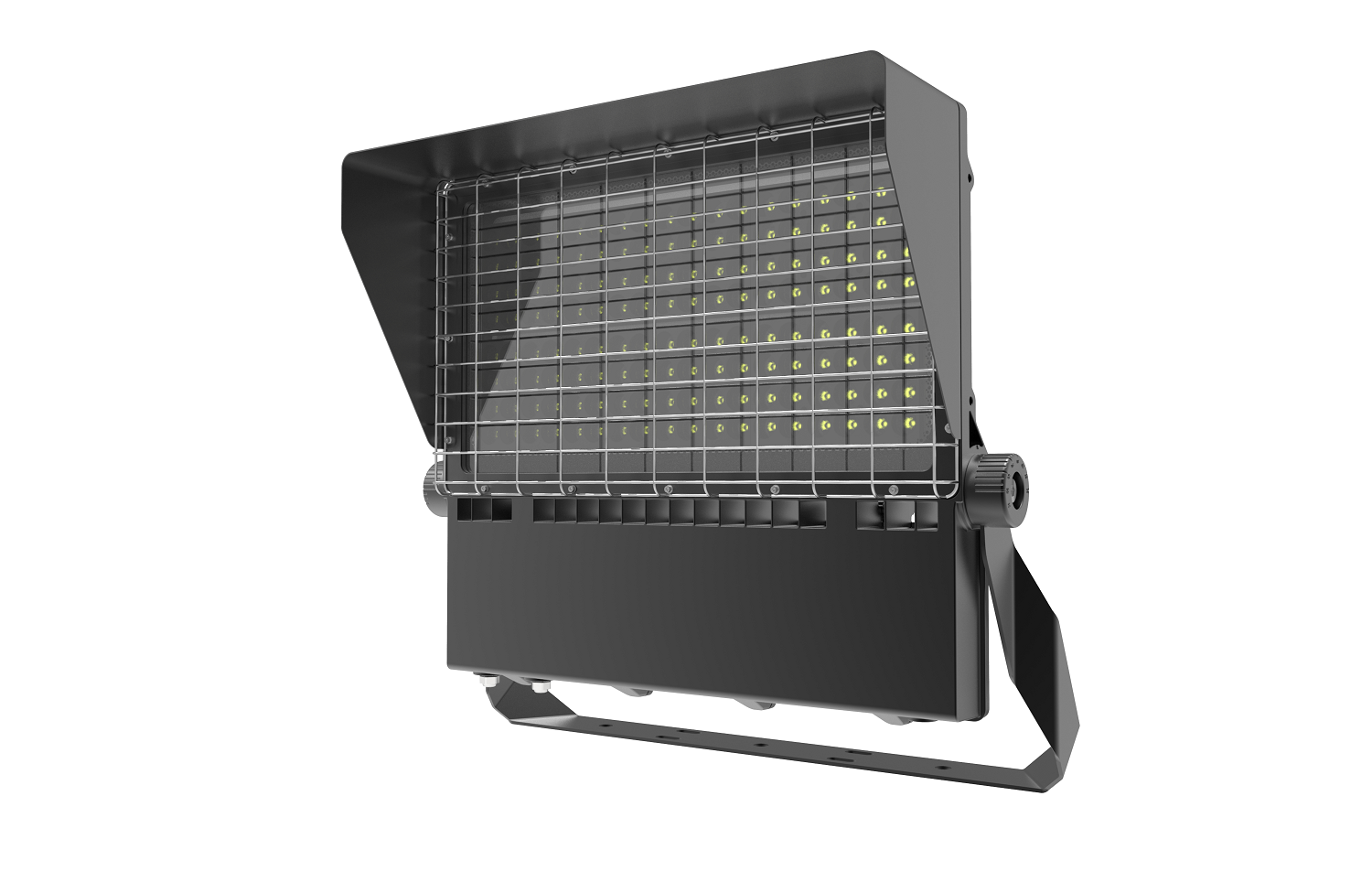

350W 500W 600W Sports and High Mast LED Flood Light
Suitable for Marine climate, Corrosion resistance more than 10 years.
Anti-glare from light source to overall lamp specially for sports area.
Patent Protection, 10°, 15°, 24°, 36°, ANB, AWB Various optical designs to fit different applications
Meets 3G vibration standards and vibration frequency of 100,000 times
High salt spray resistance, anti-ultraviolet procession
meet the needs of special places such as seaside, dock, iron tower, stadium and high pole
Tech Specs
Tech Specs
| Model No TBHM-350W TBHM-500W TBHM-600W | ||||||||||
| Input Power 350W 500W 600W | ||||||||||
| Input Voltage 90-305VAC/200-480VAC | ||||||||||
| Input Current 1.59A@220VAC 2.27A@220VAC 2.73A@220VAC | ||||||||||
| PF >0.90@220VAC | ||||||||||
| Dimming Options DALI or 0-10V | ||||||||||
| CCT 2700K / 4000K / 5000K / 5700K / 6500K | ||||||||||
| Luminous Flux 35000-52500Lm±10% 50000-75000Lm±10% 60000-90000 Lm±10% | ||||||||||
| Efficiency 100-150Lm/W±10% | ||||||||||
| LED Brand Nichia 3030 or Cree 3030 | ||||||||||
| Light Type 10° 15° 24° 36° AWB ANB | ||||||||||
| Operation Temp. -40℃~+55℃ | ||||||||||
| Life Span 45℃ L70>100,000 hrs(LED) | ||||||||||
| IP Class IP66 | ||||||||||
| IK Class IK08 | ||||||||||
| Certificates CE RoHS | ||||||||||
| Lamp Body Color Black ( RAL9005 ) |
More Details
• Various optical designs to fit different applications.
• Anti-glare from light source to overall lamp specially for sports area.
• Meets 3G vibration standards and vibration frequency of 100,000 times.
• Special pcb design, temperature monitoring and hollow out design ensure high and efficient heat dissipation.
• High salt spray resistance and anti-ultraviolet procession meet the needs of special places such as seaside, dock, iron tower, stadium and high pole.
Application
• Sports lighting
• Harbour
• Dock
• Mining area
• Square
• Any outdoor application
