SMART LED Round High Bay Light

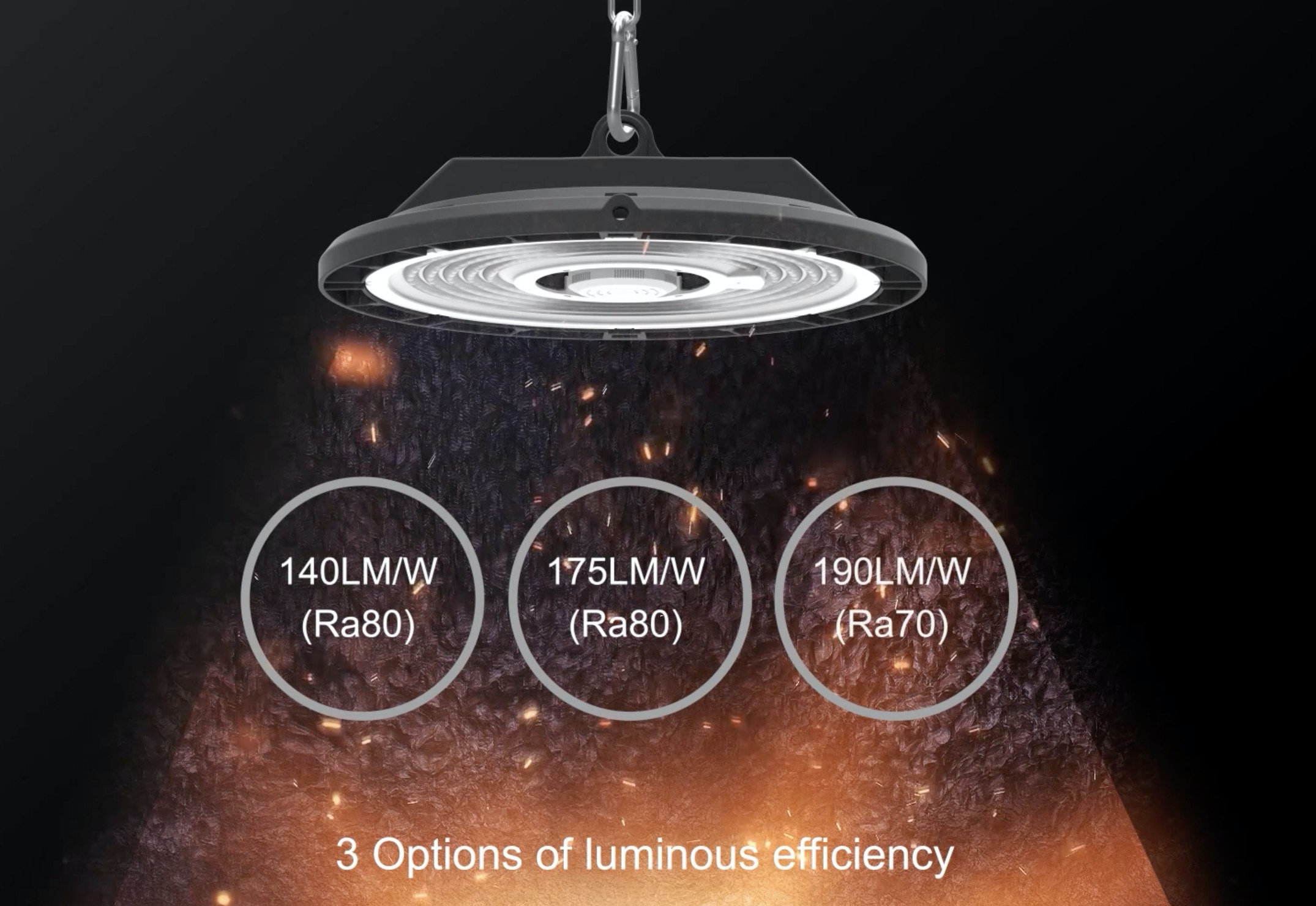

60W 100W 150W 200W, 140m/W, 175lm/W, 190lm/W for option

Plug and Play Sensor, quick installation, save stock for you.

Professional Patent Optical Design, 90°/120° beam angle available

Professional eye care, low glare, uniform luminance.

4 size available, 60W 100W 150W 200W meet most of the applications

Bracket Mount and Hook Installation Option

Tech Specs

Specifications
Model No                  TBF2-60W                           TBF2-100W                             TBF2-150W                      TBF2-200W
Input Power                60W                                     100W                                          150W                                    200W
LEDs                          2835                                       2835                                         2835                                     2835
CCT                 4000K/5000K/5700K             4000K/5000K/5700K            4000K/5000K/5700K             4000K/5000K/5700K
CRI                            >80                                          >80                                            >80                                       >80
Power Factor          >0.95                                       >0.95                                           >0.95                                    >0.95
IP Grade                    IP65                                       IP65                                             IP65                                     IP65
Input Voltage        90‐305VAC                             90‐305VAC                                90‐305VAC                            90‐305VAC
Luminous         140lm/W & 175lm/W               140lm/W & 175lm/W             140lm/W & 175lm/W         140lm/W & 175lm/W
Beam Angle            90° & 120°                             90° & 120°                                  90° & 120°                           90° & 120°
Working Temp       -40~50℃                            -40~50℃                                   -40~50℃                            -40~50℃
Lamp Body                                 Houseing:Die-casting Aluminum  Color:Black (RAL9005)   Lens:PC
Warranty                5 Years                                      5 Years                                       5 Years                              5 Years
Lifetime              L70>54,000 hrs                     L70>54,000 hrs                          L70>54,000 hrs                   L70>54,000 hrs
Features

More Details

• High Output LED’s, up to 140m/W(CRI80), 175lm/W(CRI80), 190lm/W(CRI70) for option

• CRI >80

• Isolated Driver with Overheat Protection, High PF>0.96, low THD, Flicker-free

• Environmentally friendly, no mercury, No UV, No IR

• 90°/120° beam angle

• IP65 protection rating

• Energy Efficiency Grade: A+++

• Quick Start instant 100% luminous flux

• 5 Year Warranty

• Certificate: CE,RoHS

• Body: Aluminium alloy

• Stainless steel screws

• 0-10v standard, microwave sensor optional

• Options: 1-10V Dimming, DALI dimming Integrated Microwave Sensor CLO( Constant Light Output ) Driver

Application

• Sports lighting

• Warehouse

• Storage

• Logistic
